BUTTERFLY
VALVES
1003-B
Wafer butterfly valve, PN 10/16/ANSI150, GJS400 body painted epoxy RAL 5009, AISI 304 disc, AISI 430 stems, EPDM seat, 10-position handle control/manual wheel reducer, ISO 5211 flange for connection with pneumatic, electric and hydraulic actuator.

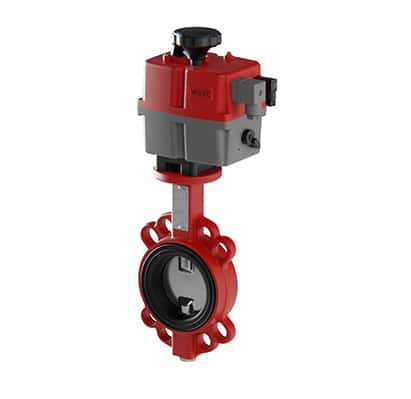

1000W
Wafer butterfly valve, PN 10/16/ANSI150, GJS400 body painted epoxy RAL 5009, A105/GJS400/AISI 316/bronze-aluminum disc, AISI 430 stems, NBR/EPDM/white EPDM/VITON/SILICONE/NATURAL RUBBER body seat, 10-position handle control/manual wheel reducer, ISO 5211 flange for connection with pneumatic, electric and hydraulic actuator.

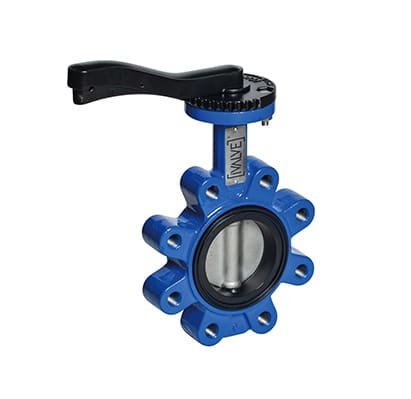

1000L
LUG type butterfly valve, PN 10/16/ANSI150, GJS400 body painted epoxy RAL 5009, A105/GJS400/AISI 316/bronze-aluminum disc, AISI 430 stems, NBR/EPDM/white EPDM/VITON/SILICONE/NATURAL RUBBER body seat, 10-position handle control/manual wheel reducer, ISO 5211 flange for connection with pneumatic, electric and hydraulic actuator.
303
Wafer butterfly valve, PN 10/16/ANSI150, GJS400 body painted epoxy RAL 5009, AISI 316/AISI 316 + PTFE disc, AISI 430 stems, PTFE body seat, 10-position handle control/manual wheel reducer, ISO 5211 flange for connection with pneumatic, electric and hydraulic actuator.
304
LUG type butterfly valve, PN 10/16/ANSI150, carbon steel body, AISI 316/AISI 316 + PTFE disc, AISI 430 stems, PTFE body seat, 10-position handle control/manual wheel reducer, ISO 5211 flange for connection with pneumatic, electric and hydraulic actuator.
305
Wafer Double Eccentric Butterfly Valve, PN 10/16/25/ANSI150, Max pressure 25 Bar, ASTM A215-WCB/A351 CF8M/SUPERDUPLEX A890 Gr. 5A body, A351 CF8M/SUPERDUPLEX A890 Gr. 5A disc, A564-630 stems, RTFE/INCONEL (625) seat, 10-position handle control/manual wheel reducer, ISO 5211 flange for connection with pneumatic, electric and hydraulic actuator.
306
LUG Double Eccentric Butterfly Valve, PN 10/16/25/ANSI150, Max pressure 25 Bar, ASTM A215-WCB/A351 CF8M/SUPERDUPLEX A890 Gr. 5A body, A351 CF8M/SUPERDUPLEX A890 Gr. 5A disc, A564-630 stems, RTFE/INCONEL (625) seat, 10-position handle control/manual wheel reducer, ISO 5211 flange for connection with pneumatic, electric and hydraulic actuator.
302
Wafer Butterfly Valve, PN 10/16/ANSI150, for abrasive products, GJS400 body painted epoxy RAL 5009, A105/GJS400/AISI 316/CHENISIL coated disc, AISI 430 stems, CARBOXIDE/POLYURETHANE body seats, 10-position handle control/manual wheel reducer, ISO 5211 flange for connection with pneumatic, electric and hydraulic actuator.
501
Butterfly valve for Food/Sanitary/Pharmaceutical sector, AISI 304L/AISI 316L body, disc and stems, SILICONE/NBR/EPDM seats, threaded connections FF UNI EN 1092/DIN2501 BL.1-DIN 11851 FF/MF/MM-GAROLLA FF/MF, manual handle control and with clamp for pneumatic and electric actuator.
